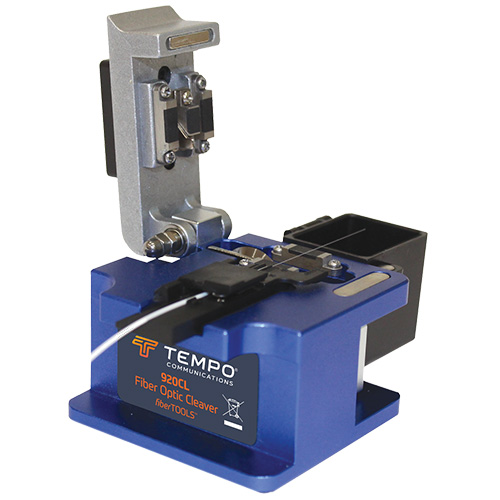

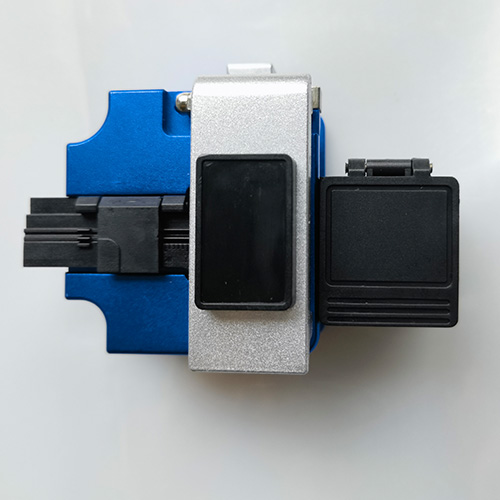

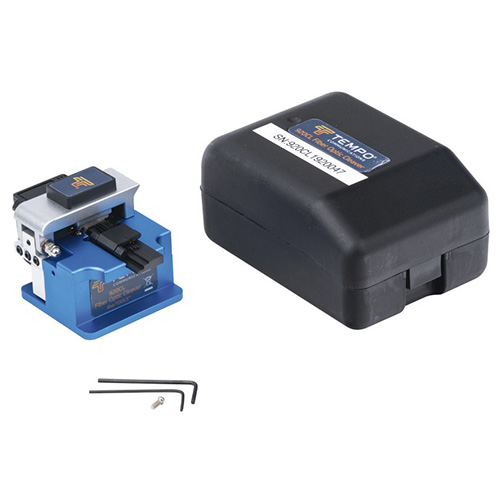

The 920CL cleaver provides fast and accurate cleaves that can be used with any fusion splicer and for preparing fibers for use with mechanical connectors. The fiber is securely held in the fixed clamp that is capable of cleaving 250 micron, 900 micron, 3mm and Bowtie fibers. The dust bin collects all fiber end cuts for safe disposal.
BENEFITS:
● Accurate Cleaves. Cleave multi-mode and single-mode fiber optic cables.
● Long Life. Blades rotate for longer life - over 48,000 cleaves.
● Adaptable. Supports 250 micron, 900 micron, 3mm and Bowtie fibers.
● Dust bin. Safely collects end cuts during cleaving process.
● Fixed Clamp. For use as a standalone cleaver.
SPECIFICATIONS:
|
Fiber Types
|
SM (G.652),MM (G.651),DS (G.653),NZDS(G.655),BIF (G.657)
|
|
Fiber Cleave Length
|
5mm to 25mm
|
|
Cladding Diameter
|
125μm
|
|
Coating Diameter
|
Single
|
|
Cleaving Angle
|
0.5 ˚
|
|
Blade Life
|
48,000 Cleaves
|
|
Weight
|
0.681bs (310g)
|
|
Dimensions
|
2.13 x 2.28 x 2.28" (54 x 58 x 58 mm)
|
