--UV Light Sources --Excelitas/Lumen Dynamics S1500A with 806-00005 High Power Dual Fiber Light Guide

Excelitas/Lumen Dynamics S1500A with 806-00005 High Power Dual Fiber Light Guide

Manufacturer:

Excelitas/Lumen Dynamics

Model:

S1500A

Condition:

Used

Availability:

2 units

Price:

$2,200.00

Qty:

Description:

Including: Excelitas S1500 , 806-00005 dual fiber light guide(2x3mmx1000mm ), new 012-64000R UV bulb,320-500nm filters, power cord, foot pedal,UV Glasses, manual,30 days warranty..........

Feature

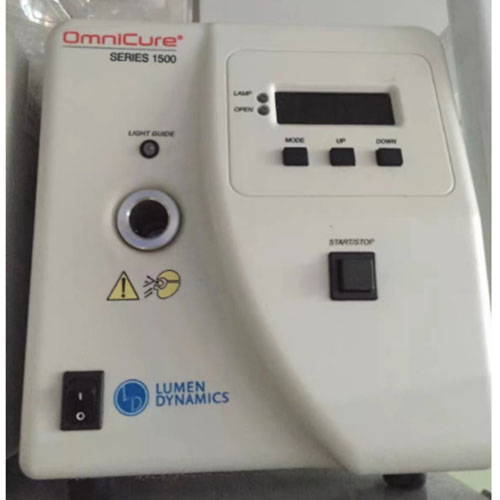

The OmniCure S1500 UV spot curing system has a multitude of built-in features that provide exceptional control, precision and versatility. Features include an adjustable iris, patented Intelli-Lamp technology, selectable bandpass filters, process alarms and ‘lock out’ protection.

Technical Specifications

Lamp Technology

High Pressure 200 Watt Mercury Vapor Short Arc with integrated Intelli-Lamp®

Lamp Life

Typical effective lamp life of 4000 hours and a guaranteed 2000 hours

Available Filters

Standard: 320-500 nm, Optional: 250-450 nm*, 365 nm,

320-390 nm, 400-500 nm

Panel Controls

Power On/Off, LED display, Up/Down adjust buttons, Start/Stop button

Panel Displays

Accumulated lamp usage, exposure time, iris setting, lamp on/warm-up status, shutter open, light guide detection, shutter/lamp error

Warm-up Period

4 minutes (typical)

Power In

100-240VAC, 50/60Hz

Dimensions

(LxWxH) 13.3" x 7.1" x 7.9" (33.8 cm x 18.0 cm x 20.1 cm)

Weight

9.9lbs (4.5kg)

Warranty

1 year (excluding lamp and light guide)

Irradiance

Up to 23W/cm2

* Blank filter; must be used with Fiber or Extended Range Light Guide.

Accessories

Part Number Description

019-01045R: Filter 365 nm

019-01046R: Filter 250-450 nm

019-01047R: Filter 400-500 nm

019-01048R: Filter 320-390 nm, requires spare lamp 012-64000R

019-01049R: Filter 320-500 nm

019-00108: Kit, External Filter Adaptor Assembly

019-01022: 320-480 nm External Filter

019-01023: 320-390 nm External Filter

019-01024: 365 nm External Filter

019-01025: Blank External Filter

019-01026: 400-500 nm External Filter

Details

It including:
1.Excelitas/Lumen Dynamics S1500A mainframe with 320-500nm filter,
2. 012-64000R lamp module ,
3.806-00005 high power dual fiber light guide (2 x 3mm x 1M),
4.power cord,
5.foot pedal,
6.UV Glasses,
7.manual,(PDF)
30 days warranty.....
