--Fiber Holder & Clamp--Fujikura FH-100-125 Fiber Holder

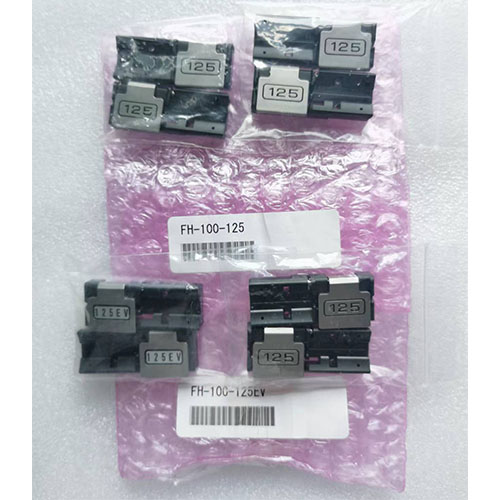

Fujikura FH-100-125 Fiber Holder

Manufacturer:

Fujikura

Model:

FH-100-125

Condition:

Brand New

Availability:

3 Pairs

Price:

$680.00

Qty:

Description:

Feature

Fiber holder FH-100 series are for Fujikura Fusion Splicer FSM-100 series and FSM-45F/PM series. The FH-100 series has various models depending on coating diameter from 55mm to 1000mm, and custom one from over 1000mm may be available.

Specification

Applicable coating diameter

55μm to 1000μm

Type variation

In accordance with coating diameter
See VARIATION table on the right

Fiber holding

Magnetic clamping

Fiber Holder placing onto splicer

Guide-pin system with two pins per one side of Fiber Holder

Dimensions

42L x 16W x 7H (mm)

Weigth

20g for 1 pair

Material

Base plate: Heat-hardening plastic

Lid: Iron-Nickel alloy

Use for

Fusion Splicers

FSM-40F,FSM-40PM,FSM-45F,FSM-45PM,FSM-45LDF,FSM-45PM-LDF,FSM-100M,FSM-100P,FSM-100M+,FSM-100P+

Fiber Cleavers

CT-32 for 125mm cladding fibers
CT-38 for 80mm cladding fibers
CT-100 for 80 to 250mm cladding fibers

Jacket Strippers

HJS-02 for 250μm to 400μm fiber
JS-02-900 for 900μm fiber
HTS-12 94μm to 1000μm fiber

Details

VARIATION

ITEM

Model

Coating dia. (mm)

FH-100-XXX
FH-100-XXX-EV

FH-100-060

55 to 71

FH-100-100

94 to 117

FH-100-125

118 to 139

FH-100-150

140 to 169

FH-100-180

170 to 199

FH-100-210

200 to 239

FH-100-250

240 to 289

FH-100-300

290 to 339

FH-100-350

340 to 389

FH-100-400

390 to 489

FH-100-500

490 to 589

FH-100-600

590 to 689

FH-100-700

690 to 789

FH-100-800

790 to 889

FH-100-900

890 to 1000

FH-100-***

1000 to (max)2000 Contact with us.

-EV is the optical fiber clamp corresponding to the end face observation system
