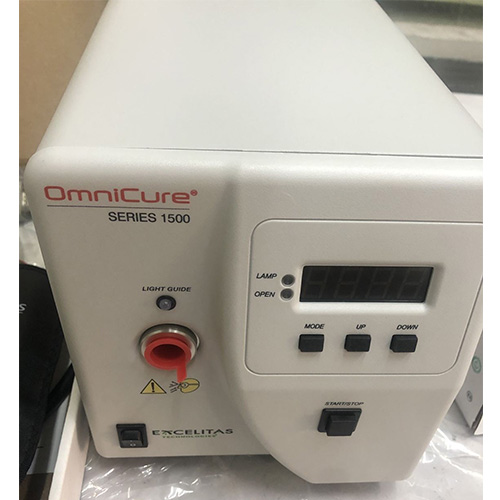

The OmniCure S1500 UV spot curing system has a multitude of built-in features that provide exceptional control, precision and versatility. Features include an adjustable iris, patented Intelli-Lamp technology, selectable bandpass filters, process alarms and ‘lock out’ protection.
Technical Specifications
|
Lamp Technology
|
High Pressure 200 Watt Mercury Vapor Short Arc with integrated Intelli-Lamp®
|
|
Lamp Life
|
Typical effective lamp life of 4000 hours and a guaranteed 2000 hours
|
|
Available Filters
|
Standard: 320-500 nm, Optional: 250-450 nm*, 365 nm,
320-390 nm, 400-500 nm
|
|
Panel Controls
|
Power On/Off, LED display, Up/Down adjust buttons, Start/Stop button
|
|
Panel Displays
|
Accumulated lamp usage, exposure time, iris setting, lamp on/warm-up status, shutter open, light guide detection, shutter/lamp error
|
|
Warm-up Period
|
4 minutes (typical)
|
|
Power In
|
100-240VAC, 50/60Hz
|
|
Dimensions
|
(LxWxH) 13.3" x 7.1" x 7.9" (33.8 cm x 18.0 cm x 20.1 cm)
|
|
Weight
|
9.9lbs (4.5kg)
|
|
Warranty
|
1 year (excluding lamp and light guide)
|
|
Irradiance
|
Up to 23W/cm2
|
* Blank filter; must be used with Fiber or Extended Range Light Guide.
Accessories
Part Number Description
019-01045R: Filter 365 nm
019-01046R: Filter 250-450 nm
019-01047R: Filter 400-500 nm
019-01048R: Filter 320-390 nm, requires spare lamp 012-64000R
019-01049R: Filter 320-500 nm
019-00108: Kit, External Filter Adaptor Assembly
019-01022: 320-480 nm External Filter
019-01023: 320-390 nm External Filter
019-01024: 365 nm External Filter
019-01025: Blank External Filter
019-01026: 400-500 nm External Filter
