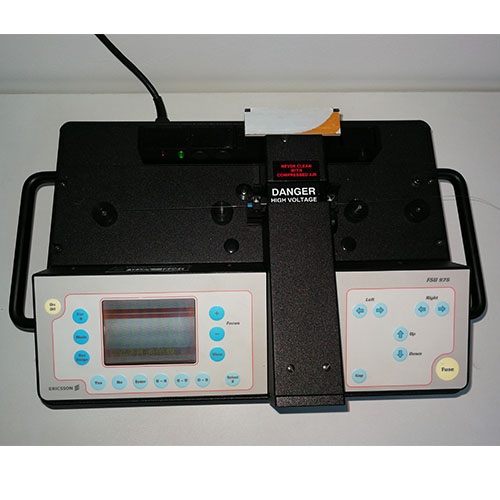

Fusion Splicer FSU 975 Single Fiber Splicing
●Faster splicing sequence
●Easier operation and even more automatic
●Warm image direct access
●PC communicationspackage
●Special software Included
Enhanced operating functions
●Warm Image Direct Access
One-touch button for immediate view
●Menu-based splicing programs
- Scrolling for easy program selection
- Alphanumeric choice of programs
●Extended temperature range
+40°C with temperature-control
Splicing performance
●Fast automatic splicing sequence
●Data storage of up to 150 splices
●PC communications package for loading/downloading data, programs and parameter editing
Special software included
●Erbium
for splicing erbium doped fiber
●Attenuator-making
for controlled splice attenuation (intended losses)
●Tapering
to transform fiber ends for:
- microlenses
- injecting light into LEDs
- splice tapering
Technical Data
|
Fibers |
Single-mode, multimode, dispersion-shifted, erbium
Single fiber 125 mm/2 mm and 250 mm/2 mm |
|
Typical splice losses |
0.02 dB for identical SM fibers |
|
Power supply |
90-264 V AC, 50-60 Hz,
13.2 V DC with special adapter |
|
Operating environment |
0 to +40° C, 0-95% RH (non-condensing) |
|
Monitor |
3” high-resolution LCD monitor |
|
Size, weight |
370x220x145 mm (WxDxH), 6.5 kg |
