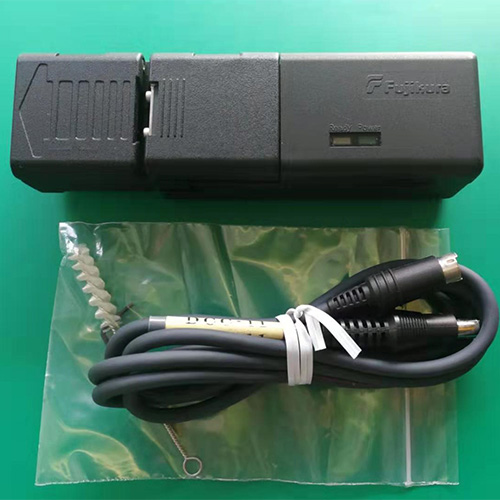

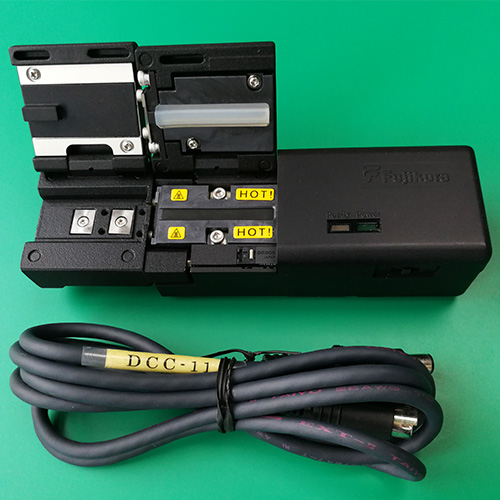

Fujikura HJS-03 Hot Jacket Strippers
The HJS-02, HJS-03 and HJS-03-24 hot jacket strippers provide superior ribbon
andfield-ribbonized stripping performance. They conserve energy with a Power
Save feature when the splicer is operated by battery power. A temperature selection switch provides easy field optimization for different fibers or operating conditions.
An optional single-fiber adapter may be used to provide easy single-fiber capability
for difficult-to-strip fibers. These strippers accept all Fujikura field and factory splicer designed fiber holders. The HJS-03 is a battery powered hot jacket stripper specifically designed for use withthe SpliceMate fusion splicer but it can be used in other applications. The HJS-03-24 hot jacket stripper is designed for smooth and
controlled stripping of 24-fiber ribbon.
Specifications
|
MODEL |
HJS-02,HJS-03 |
HJS-03-24 |
|
Applicable Fiber Count |
1 to 12 Fiber Ribbon |
1 to 24 Fiber Ribbon |
|
Ribbon Thickness |
250 μm to 400 μm |
250 μm to 400 μm |
|
Stripping Length |
35 mm maximum |
35 mm maximum |
|
Typical Heating Time |
3 second Normal Mode
8 second Power Save Mode |
3 second Normal Mode
30 second Power Save Mode |
|
Standard Heating Temperature |
100℃ |
100℃ |
|
Dimensions (W x D x H) |
107 mm x 40 mm x 29 mm |
149 mm x 58 mm x 36 mm |
|
Weight |
195 g (0.43lb) |
300 g (0.66 lb) |
|
Power Supply |
12V DC |
12V DC |
|
Operating Conditions |
-10℃ to 50℃ |
-10℃ to 50℃ |
|
Storage Conditions |
-40℃ to 80℃ |
-40℃ to 80℃ |
