Suitable for FTTH Dedicated for single fiber cleaving.

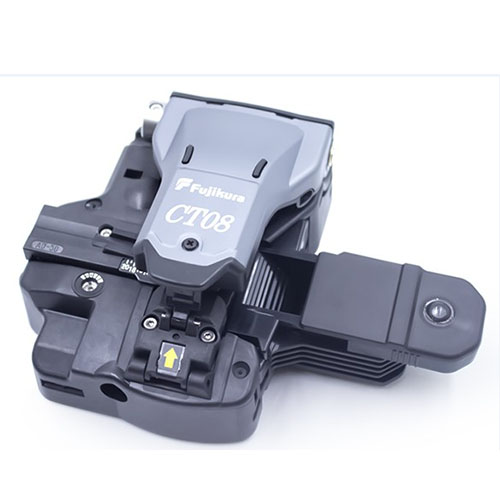

CT08 is the most robust cleaver. It is designed to provide easy replacement of fiber clamps and cleaving blade by customer thereby reducing maintenance cost and time.
Features
¡ñ Dedicated for single fiber cleaving.
¡ñ Absolute robustness
¡ñ Replacement of fiber clamps and cleaving blade by user
¡ñ No tool necessary for blade rotation
¡ñ Blade life up to 48,000 cleaves
¡ñ Easy fiber placement with wide lever opening
¡ñ Simple and single-step operation
SPECIFICATIONS
Description
|
CT08
|
Applicable optical fiber
|
Glass optical fibers
|
Number of fibers
|
Single
|
Cladding diameter
|
125 μm
|
Coating diameter
|
160μm to 900μm( 2mm/3mm cord & drop cable )
|
Cleaving length
|
AD-50
|
5mm to 20mm£¨coating diameter £½250μm£©
10mm to 20mm£¨coating diameter > 250μm£©
|
FH-xx-
|
10mm
|
Cleaving angle*1
|
Typical 0.5 degrees
|
Blade life
|
Typical 48,000 fibers
|
Dimensions
|
110(W)×95(D)×45(H) mm
|
Weight
|
185g
|
Operation condition
|
Temperature: -10 to 50¡æ
Humidity: 0 to 95£¥ RH(Non-condensing)
|
Storage condition
|
Temperature: - 40 to 80¡æ
Humidity:0 to 95£¥ RH(Non-condensing)
|
Resistance feature
|
Shock : 76cm (30inch) all direction drop
|
Dust resistance : Exposure to dust
£¨ 0.1 to 500μm dia. Alumina Silicate£©
|
Rain resistance : H=10mm/hr for 10min
|
