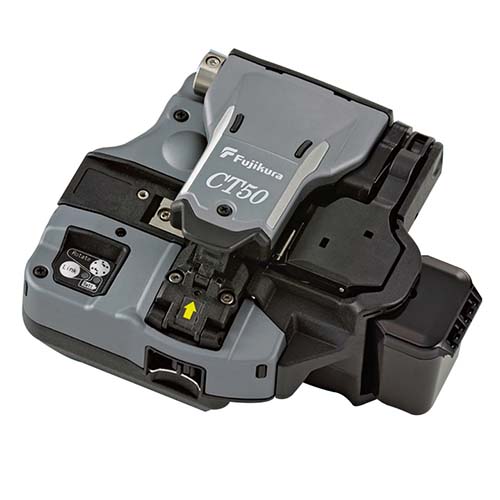

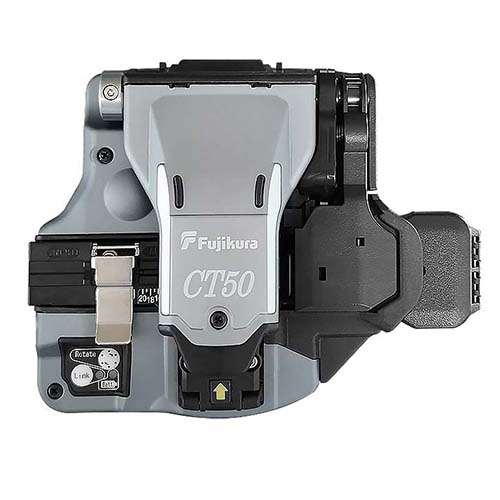

The CT50 offers enhanced drop impact resistance compared to other existing cleavers and allows workers to replace the cleaving blade, providing customers with a drastic reduction in handling time and maintenance costs. The CT50 changes the position of the cleaving blade automatically and in accordance with the condition of the cleaving state of optical fibers on a fusion splicer through wireless communication. In addition,the CT50 can complete cleaving works including scrap collection, with a single-step.
Features
● Applicable up to 12-fiber cleaving
● Automatic cleaving blade rotation via wireless communication
● User replaceable fiber clamps and cleaving blade
● 60,000 fibers blade life(3 height x 16 positions)
● Wide lever opening angle allows easy fiber placement
● Single-action operation including fiber scrap collection
SPECIFICATIONS
|
Description |
CT50 |
|
Applicable optical fiber |
Silica optical fiber |
|
Fiber count |
Up to 12 |
|
Cladding diameter |
125 µm |
|
Coating diameter |
160 to 900µm 2 to 3mm cord and drop cable |
|
Cleaving length |
AD-50 |
5mm to 20mm（coating diameter ＝250µm）
10mm to 20mm（coating diameter > 250µm） |
|
Fiber holder |
10mm (from the edge of FH:13mm) |
|
Cleaving angle |
Single fiber：Typical 0.7 degrees
12 ribbon fibers：Typical 1.0 degrees |
|
Blade life |
Typical 60,000 fibers
(1,250 fibers x 3 heights x 16 positions) |
|
Wireless connectivity |
BluetoothⓇ 4.1 LE*² |
|
Power supply |
AAA (LR03) dry battery: 2pc |
|
Dimensions |
120(W) x 95(D) x 58(H)mm |
|
Weight |
300g |
|
Operation condition |
0 to 95% RH and 0 to 40°C (non-dew) |
|
Storage condition |
0 to 95% RH and -40 to 80°C (non-dew) |
|
Resistance features |
Shock: 76cm (30inch) all directions drop |
|
Dust resistance: Exposure to dust (0.1 to 500µm dia. Alumina Silicate) |
|
Rain resistance: H=10mm/hr for 10min |
