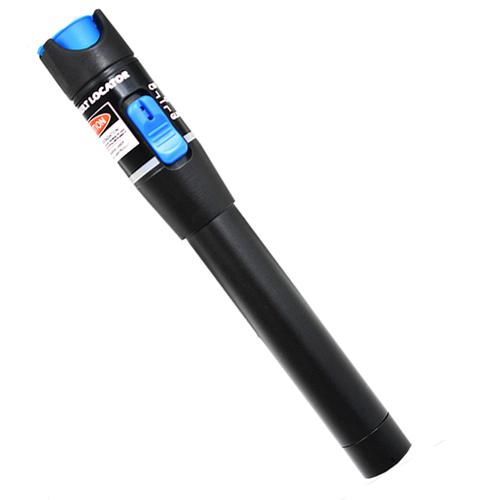

VFL-850 Visual Fault Locator—Pen Size
1. Summary
650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
2. Functions and feature
--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
3. Specifications
|
Wavelength |
650nm±10nm |
|
Light source |
FP-LD laser |
|
Output power |
1mw,10mw,20mw,25mW,30mW (optional) |
|
Connector |
2.5mmuniversal adapter |
|
Working mode |
CW or 2Hz modulation |
|
Operating temperature |
-10～+60 °C |
|
Storage temperature |
-25～+70 °C |
|
Power |
2pcs AA battery |
|
Working hours |
≥10 |
|
Weight |
160g |
|
Dimension (mm) |
175*26*26 |
