--OTDR--Opticseq TR600 Series OTDR

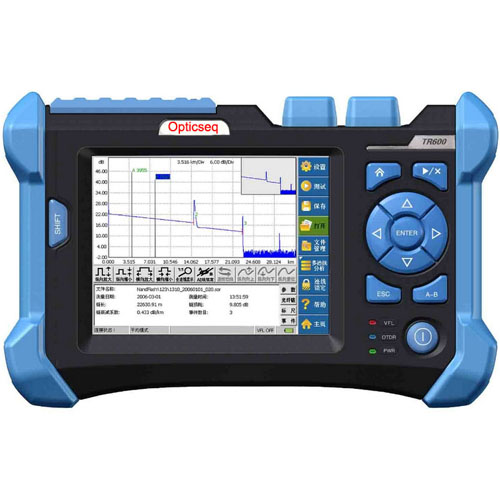

Opticseq TR600 Series OTDR

Manufacturer:

Opticseq

Model:

TR600

Condition:

New

Availability:

Yes

Price:

$1,200.00

Qty:

Description:

Feature

Feature:
●Large touch screen + shortcut keys, easy to operate
●Large-capacity polymer lithium battery, with superlong working hours
●Intelligent testing, simple use , powerful function.
●Dual-media of Memorty Card+ SD card, with superlarge storage capacity of traces.
●Able to meet FTTx testing needs.
●Several wavelengths can be chosen.
●Solid casing design, dustproof and shockproof

Details

Specifications
Wavelength(nm)	1310/1550			1310/1490/1550	1625	850/1300
Dynamic range(dB)	32/30	38/36	42/40	32/30/30	36	20/18
Pulse width (ns)	5,10,20,40,80,160,320,640,1280, 2560,5120,10240,20480					5,20,40,80,160, 320,640,1280
Event blind zone (m)	≤1.8m
Attenuation blind zone (m)	≤10m
Display	5.6 inch TFT LCD touch screen，640*480
Linearity (dB/dB)	±0.05 dB/ dB
Loss threshold (dB)	0.05
Loss resolution ratio (dB)	0.001
Sampling resolution ratio (m)	0.125 to 8
Sampling point	32K
Distance uncertainty (m)	±(1 m + 5×10-5× distance+samping interval)
Distance scope (km)	0.3至180
Typical real-time refreshing duration	0.2s
Memory capacity of trace	SD卡（8G）,＞10000 pieces
Duration of measurement	5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable

General specification
Dimension（H×W×D)	150×235×66mm
Weight	1.5kg
Temperature	Operating temperature -10℃ to 50℃ Storage temperature -40℃ to 70℃
Relative humidity	0% to 95% (non condensation)
Power supply	Lithium battery; continuing working duration ≥ 8 hours
Interface category
Optical interface	FC/UPC (PC and APCare selectable)
Data interface	USB interface, SD card interdace
Visible failure orientation VFL
Wavelength	650nm
Output power(dBm)	≥-3
Maximum testing distance	3km
