--Fujikura--Fujikura FSM-18R Rribbon Fusion Splicer

Fujikura FSM-18R Rribbon Fusion Splicer

Manufacturer:

Fujikura

Model:

FSM-18R

Condition:

Used

Availability:

2 units

Price:

$.00

Qty:

Description:

Feature

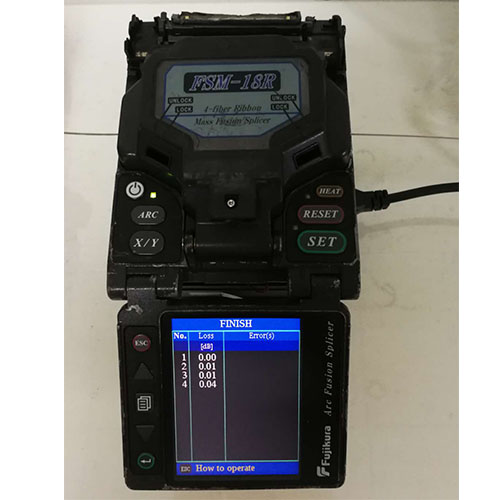

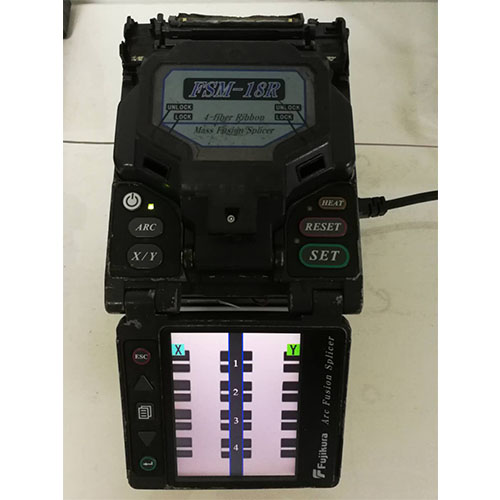

The Fujikura Fusion Splicer – FSM-18R is a 4-fiber ribbon splicer with similar versatility and robust nature of the Fujikura 12-fiber ribbon splicer. Well-suited for FTTx or LAN applications, the FSM-18R fusion splicer can splice up to 4 fibers, as well as, single fibers. The enhanced robust features provide resistance to shock, dust, and rain to minimize downtime and improve operational performance and withstands a 30” drop test.

Automated features such as auto-start splicing, auto-start tube heater operation, automatic ribbon fiber identification, and auto-arc calibration reduce operational steps and improve splicing performance. Additional improvements include automatic image orientation when switching the dual position monitor, a large capacity battery option and the ability to charge the battery during splicer operation.

New software included with each splicer provides the ability to download splice data to a PC for splice data reporting, download splicer operating software via the internet to maintain peak performance, and download video images from the splicer to enhance technical support.

Features:

Highly durable – designed for tough environments
Suitable for splicing up to 4-fibre ribbon
Cladding alignment with fixed V-groove
Auto-start tube heater
Splice image capture facility
Software upgrade via Internet
Includes multi-function worktable

Details

Specifications:

Applicable fibres	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fibre Count	Single, 2 and 4
Cladding diameter	125µm
Coating diameter	Ribbon fibre thickness 250 and 400µm. Single fibre 250 and 900µm
Fibre cleaved length	10mm using FH-50-xx fibre holders, FH-60-250 and FH-60-900
Actual average splice loss	0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS. Measured by cut-back method relevant to ITU-T standards.
Splice time	Typical 20sec. with standard SM fibre
Return loss	60dB or greater
Splicing modes	Total number available equals 100; for pre-set modes and user programmable modes
Splice loss estimate	Cladding axis offset are taken into account for accurate loss estimate
Storage of splice result	The last 2000 results to be stored in the internal memory
Fibre display	X/Y, or both X and Y simultaneously
Magnification	35x for single X or Y view, or 35x for X and Y view changeable to 90x
Viewing method	By two CMOS cameras for fibre viewing and 4.1inches TFT colour LCD monitor
Image change over	The fibre image is turned upside down automatically according to the monitor position
Operating condition	0-3660m above sea level, 0-95% RH and -10 to 50°C respectively.
Mechanical proof test	2N (standard)
Tube heater	Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time	Typical 40sec.with FP-03 protection sleeve.
Applicable protection sleeve length	60mm, 40mm and a series of micro sleeves.
No. of splice/heating with battery	90 cycles with BTR-08.
Power supply	Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-13. 13.2Vd.c. with BTR-08
Terminals	USB1.1 (USB-Mini B) for data and video signal transfer to PC
Wind protection	Max. wind velocity of 15m/s
Dimensions	136(W) x 161(D) x 143(H) mm
Weight	2.1kg, with ADC-13 AC Adaptor, 2.5kg, with BTR-08 Battery
