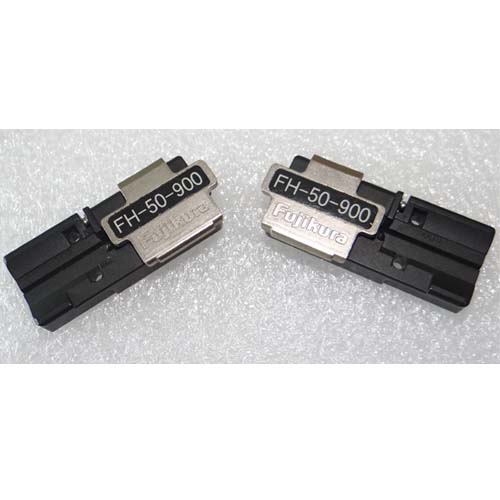

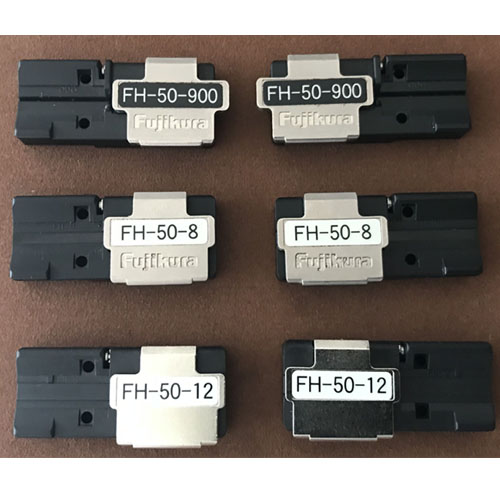

Fiber Holder FH-50 series The Fiber Holder,FH-50 series is exclusively used for Fujikura FSM-60R,FSM-18R, SpliceMate, and former Fujikura ribbon fiber Splicers. Fujikura Fiber Holder System is developed to provide appropriate splicing work for several kinds of fibers, single fibers or fiber ribbons. The FH-50 series is supplied with a pair, for the left and the right respectively.
SPECIFICATION
Applicable number of fiber
Single to 12 fibers
Type variation
In accordance with number of fiber Please see VARIATION table below
Fiber holding
Magnetic clamping
Fiber Holder placing onto splicer
Guide-pin system with two pins per one side of Fiber Holder
Dimensions
39L x 16W x 7H [mm]
Weight
20g for 1pair
Dimensions/Weight
125W x 48D x 41H [mm], 260g * weight including battery
Material
Base plate: Heat-hardening plastic / Lid:Iron-Nickel alloy
Use for
Fusion Splicer
Ribbon
70R+,FSM-60R,FSM-50R,19R,FSM-18R,FSM-17R,FSM-11R
Single
80S,80C,70S,61S,62C,62S,41S,38S,31S,27S+,22S,21S,19S, FSM-18S,FSM-17S-FH,12S,FSM-11S
Fiber Cleaver
CT-05,CT-06,CT08,CT16,CT-20,CT-22,CT-30,CT-32,CT-38, CT50,CT52,CT58,CT-102
Jacket Stripper
HJS-02, HJS-03 (except FH-50-250and FH-50-900)
VARIATION
Ribbon fiber fusion splicer
Model
FH-50-2
FH-50-4
FH-50-5
FH-50-6
FH-50-8
FH-50-10
FH-50-12

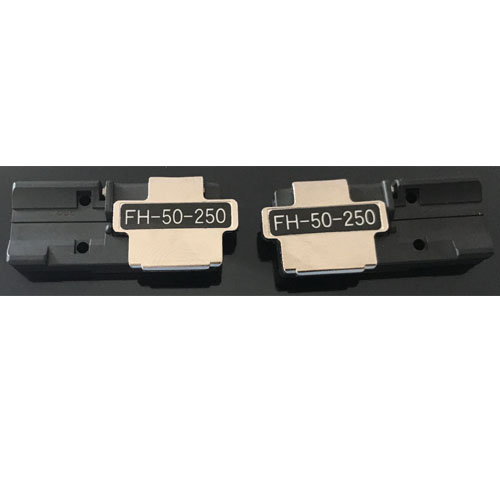

FH-50-250
FH-50-900
Fiber
2-fiber ribbon
4-fiber ribbon
5-fiber ribbon
6-fiber ribbon
8-fiber ribbon
10-fiber ribbon
12-fiber ribbon
Single (250μm)
Single (900μm)
Single Fiber fusion splicer
Note) The FH-50 series can be used for Fujikura's
previous models of splicers or fiber cleavers.
