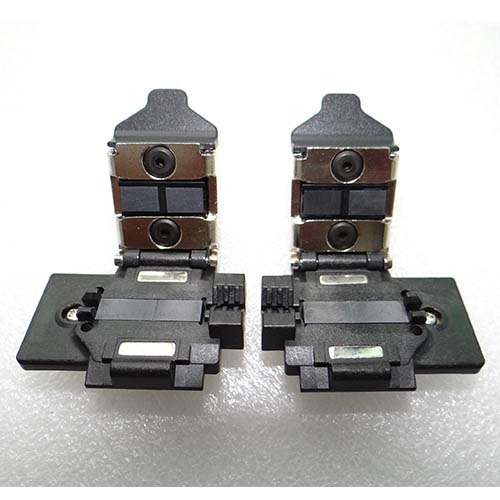

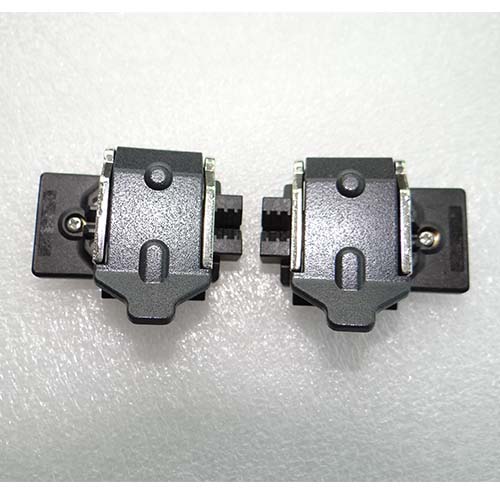

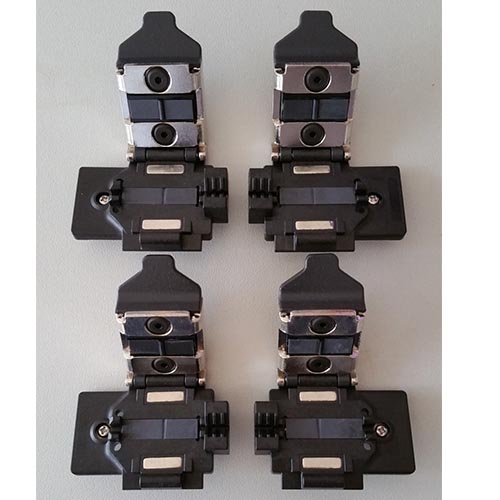

The CLAMP-S60 series is sheath clamp exclusively used for Fujikura FSM-60S and FSM-18S. 4 types of sheath clamps are arranged for types of fiber, coating diameter and cleave length. SPECIFICATION Model CLAMP-S60A CLAMP-S60B CLAMP-S60C CLAMP-S60D Applicable number of fiber Single Coating diameter 100 to 1000 µm 100 to 1000 µm 900 µm¡¡loose tube fiber Cleave length (Corting diameter) 8 to 16 mm £¨250µm or less£© 16mm £¨250µm and above£© 8 to 16 mm 16 mm 8 to 16 mm Fiber holding Magnetic clamping Sheath Clamp setting onto splicer Sheathe clamp is to be set on a slide stage with a screw, the location is controlled by the 2 guide pins. The open lid direction can be changed depending on operation style. Dimensions 40L x 33W x 17H (mm) Weight 40g for 1 pair Use for FSM-60S, FSM-18S ** CLAMP-S60A is standard item for FSM-60S and FSM-18S.
SPECIFICATION
Model
CLAMP-S60A
CLAMP-S60B
CLAMP-S60C
CLAMP-S60D
Applicable
number of fiber
Single
Coating diameter
100 to 1000 µm
900 µm¡¡loose tube fiber
Cleave length
(Corting diameter)
8 to 16 mm £¨250µm or less£©
16mm £¨250µm and above£©
8 to 16 mm
16 mm
Fiber holding
Magnetic clamping
Sheath Clamp setting
onto splicer
Sheathe clamp is to be set on a slide stage with a screw, the location is controlled by the 2 guide
pins. The open lid direction can be changed depending on operation style.
Dimensions
40L x 33W x 17H (mm)
Weight
40g for 1 pair
Use for
FSM-60S, FSM-18S
** CLAMP-S60A is standard item for FSM-60S and FSM-18S.
