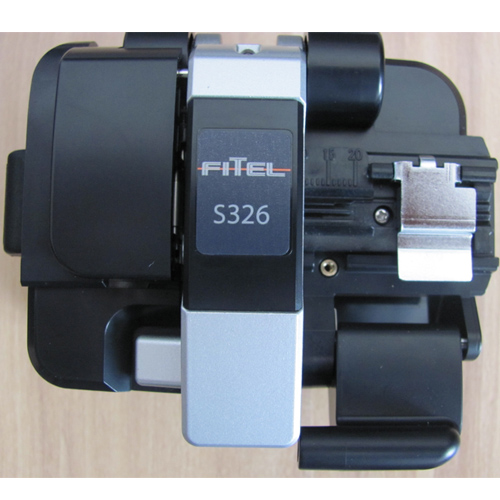

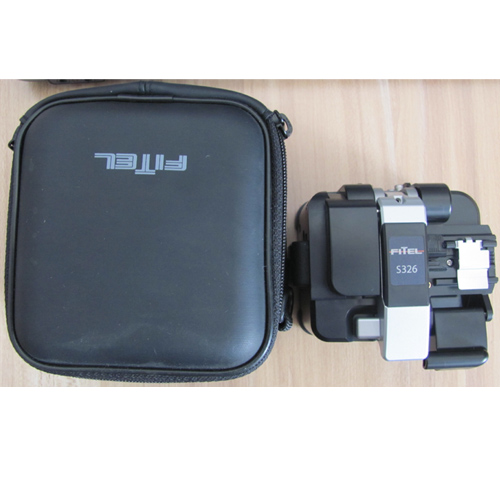

Fitel S326 High Precision Optical Fiber Cleaver

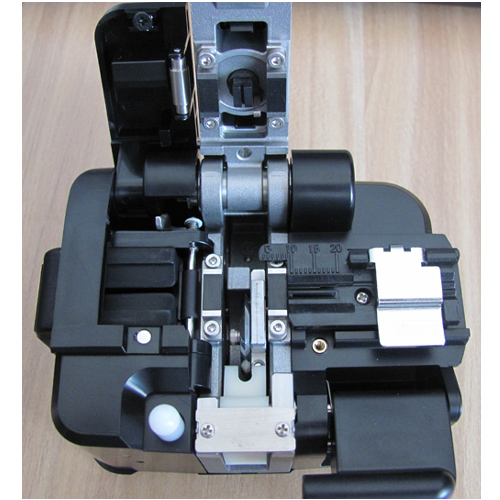

With its ergonomic and light weight design, the S326 cleaver offers the operator the versatility to cleave on a work bench or in the palm of their hand. The reduced lid size and wide opening angle facilitates fiber loading and improves stability resulting in better single and ribbon fiber cleaves.
Just pressing the lever completes the fiber cleave and automatically collects the waste. With 24 positions, the long life-time blade achieves 48,000 fiber cleaves. The S326 cleaver can offer optical fiber cleaving for a full range of OSP and OEM applications. The S326A configuration comes with both the regular and large size fiber waste bin or users can choose the smaller S326B option
Key Features
● Cleave anywhere
● Simple operation
● Easy fiber loading
● Durable and reliable design
● Wide lid opening
● Long blade life
● Light weight (About 30% reduced from previous model)
● High capacity waste bin (S326A)
Specifications
|
Fiber Types
|
All fiber types
|
|
Fiber Count
|
Single to 12 ribbon fiber
|
|
Clad Diameter
|
125 μm
|
|
Coating Diameter
|
Single fiber: 250 to 900 μm
Ribbon fiber: 280 to 400 μm (thickness)
|
|
Cleave Length
|
Single fiber: Fixed length 10 & 16 mm, Variable length 3 to 20 mm
Ribbon fiber: Fixed length 10 mm
|
|
Blade Life
|
48000 fibers (2000 fibers×24 positions)
|
|
Dimensions
|
S326A: 96W×79D×56H mm
S326B: 60W×79D×56H mm
|
|
Weight
|
S326A: 250 g
S326B: 195 g
|
