Fujikura CT-32 Precision Fiber Cleaver

Manufacturer:

Fujikura

Model:

CT-32

Condition:

New

Availability:

Price:

$.00

Description:

Feature

The CT-32 is a modified version of our standard cleaver model CT-30. The modifications allow use of a spacer system that provides for the full range of acceptable cleave lengths for use with our factory fusion splicer models FSM-45F & 45PM. The CT-32 also allows for a reduced cleave length of 8mm on 900μm jacketed fibers and as short as 3mm on 250μm and 400μm coated fibers. Included with the CT-32 is a 1mm spacer that allows for the recommended cleave lengths for use with our factory fusion splicer models. An optional 2mm spacer can be purchased to expand cleave length options.

Specifications

PARAMETER	VALUE
Dimensions (W x D x H)	69mm x 82mm x 41mm
Weight	180g
Blade lifetime	48,000 cleaves (1,000 x 3 heights x 16 positions )
Cleave angle capability	typical <0.5˚
Fiber count	Single
Fiber type	Silica Optical Fiber
Cladding diameter	125 μm
Coating diameter	0.25mm to 0.9mm depending on fiber holder (FH-40 series)

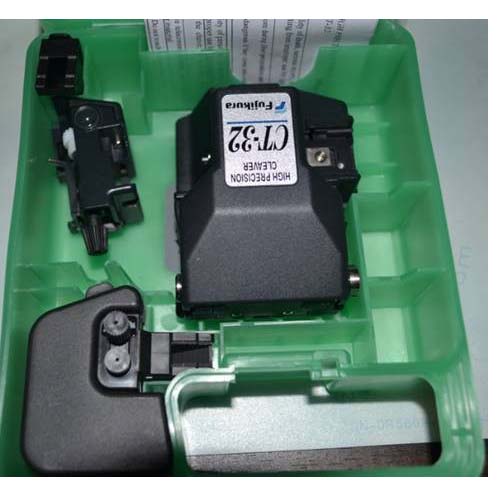

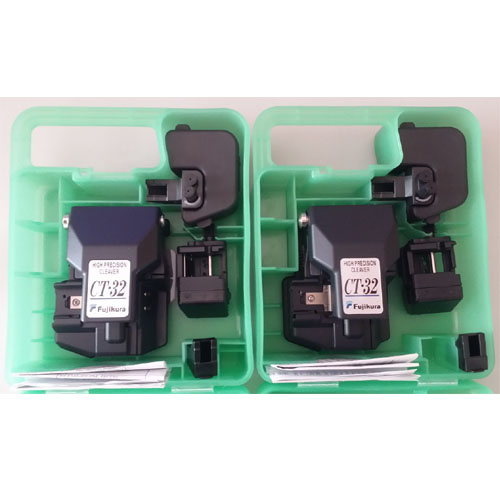

STANDARD PACKAGE

Description	Model	Q’ty
Main body	CT-32	1 pc
Fiber collector	FC-02	1 pc
Fiber dust box	FDB-02	1 pc
Carrying case	CC-18	1 pc
Hexagonal wrench	HEX-01	1 pc
Cleaver spacer	SPA-40-CT-040	1 pc
Instruction manual	-	1 pc
