KEY FEATURES
● Easy back-panel connector inspection
● Truly rugged and lightweight solution for the fi eld
● Image-capture capability for report documentation
● Ideal for all types of connectors: APC, UPC, MTP and more
● Slim design for easy use in crowded patch panels
● Compatible with EXFO test instruments
Delivering fast pass/fail assessment of connector endfaces, EXFO’s
ConnectorMax Analysis Software is designed to save both time and money in
the field. The industry’s first platform-based, automated inspection application,
ConnectorMax eliminates guesswork, instead providing clear-cut connector
endface analysis.
ConnectorMax enables field technicians to analyze defects and scratches and
measure their impact on connector performance. Results are then compared
against pre-programmed IEC/IPC standards or user-defined criteria, leading
to accurate pass/fail verdicts established right on-site.
ConnectorMax therefore helps avoid two time- and money-consuming situations:
undetected connector defects that force technicians to later return to the site,
and unnecessary replacement of connectors whose slight defects are not
enough to get a “fail” verdict.
APPLICATIONS
Patchcord inspection
● Compatible with a wide range of connector types
● Offers great optical performance for patchcord quality assurance
● Use it as a stand-alone unit to perform fi eld applications or with a USB adapter in a manufacturing environment
Patch panel bulkhead inspection
● Get a clear view of both sides of an interconnection

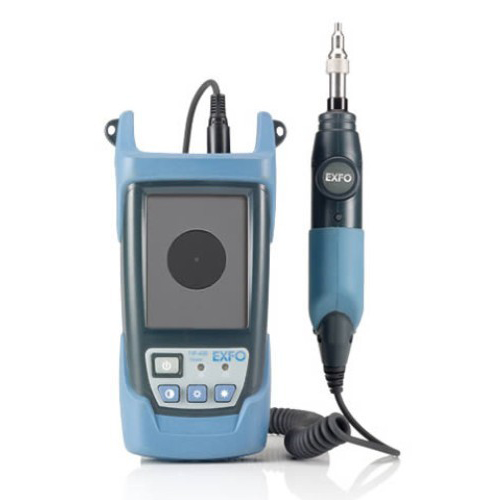

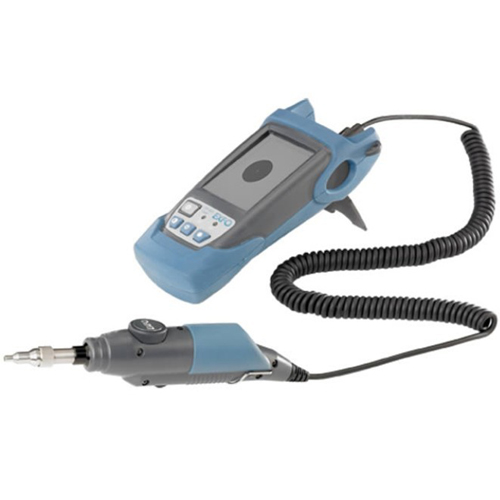

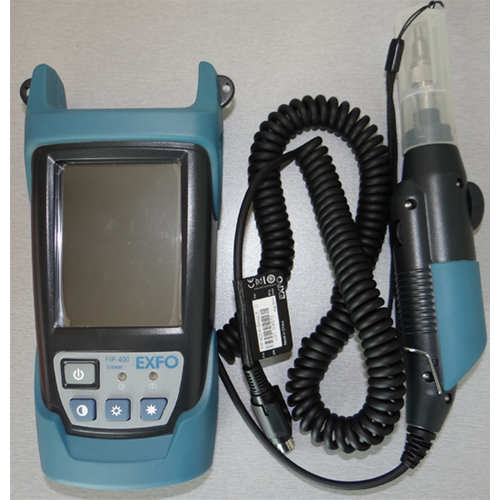

● Inspect hard-to-reach connecto rs without stressing adjacent fi bers, thanks to the FIP-400’s slim design
Single-fiber connector inspection
● Compatible with 1.25 mm and 2.5 mm angled-polished and ultra-polished connectors (APC and UPC)
Multifiber connector inspection
● Compatible with male and female ribbon connectors such as
MTP multifi ber APC and UPC connectors
Connection inspection through ConnectorMax Analysis Software
● Delivers clear-cut pass/fail verdicts, eliminating guesswork in the fi eld and
helping you save time and money
● Lightning-fast: results in 4 seconds through simple one-touch operation
● Full test reports for future referencing
