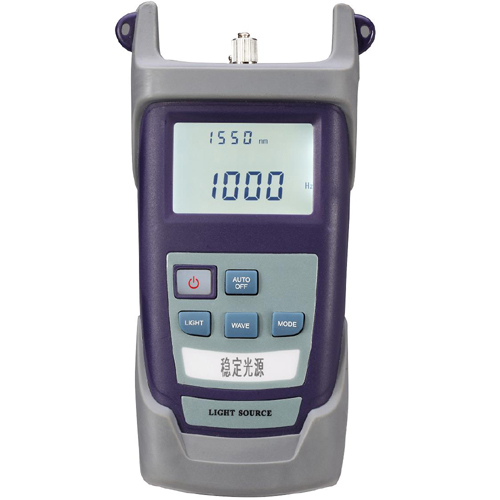

OLS-300 Series Handheld optical light source

Manufacturer:

Sincroncom

Model:

OLS-300

Condition:

Brand New

Availability:

1000 pcs

Price:

$120.00

Qty:

Description:

Feature

OLS-300 Series Handheld optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm VFL and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the OPM-300 optical power meter, it is a perfect solution for the fiber optic network characterization.

Features
● Provides 1~4 output wavelengths which can be optional according to customers needs
● CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
● High stability of the output power
● Stable output wavelength
● Backlight LCD display supports night operation
● Compact size and decent appearance
● Large LCD, easy operation

Applications
● Maintenance in Telecom
● Maintenance CATV
● Test Lab of optical fibers
● Other Fiber Optic Measurements

Details

Specifications

Type	OLS-300A	OLS-300B	OLS-300C	OLS-300D	OLS-300E
Wavelengths(nm)	1310/1550 nm	1310/1490/ 1550nm	850/1310/ 1550nm	1300/1310/ 1550nm	850/1300/ 1310/1550nm
Emitter Type	FP-LD,LED or others please specify
Output Power(dBm)	-6~-7(1310/1550nm),>0 (650nm)
Output Stability	+0.05dB/15mins; +0.1dB/ 8hours
Modulation Frequencies	CW / 2(650nm) / 270, 1K,2K (1310nm/1550nm)
Optical Connector	FC/PC ( Interchangeable FC/SC/ST connectors)
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time	45 hour
Operating Temperature	- 10 ~ +60 ℃
Storage Temperature	- 25 ~ +70 ℃
Dimension(mm)	1728233
Weight	295g
Recommendation	OLS-300 Handheld Light Source is designed for optimal use with OPM-300 Optical Power Meter for measuring optical loss on both sigle mode and multimode fiber cable.
