--OTDR--Anristu MT9081D 1310/1550nm OTDR

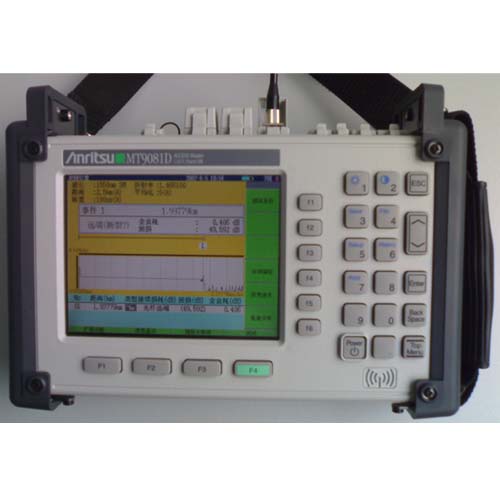

Anristu MT9081D 1310/1550nm OTDR

Manufacturer:

Anristu

Model:

MT9081D

Condition:

Used

Availability:

Price:

$.00

Qty:

Description:

Feature

Compact, Lightweight, and Convenient

● 1 m dead zone (event) supporting FTTx
● Dynamic range supporting FTTx
● Compact and lightweight (2.2 kg)
● Fast start of less than 15 seconds
● Stores more than 1,000 waveforms in internal memory and more than 30,000 waveforms in external USB flash memory*1
● Waveform comparison
● Active fiber check
● Warning level setting
● Printer, File Output Functions
● Two USB ports are provided as standard
● MX907600A Emulation software

Model	MT9081D
Wavelength	1.31/1.550 ±30 nm
Measurable optical fiber	10/125 μm single-mode optical fiber (ITU-T G.652)
Optical connector	FC, SC, DIN, HMS-10/A, ST, LC (replaceable, PC type) FC, SC (APC type)
Distance range	0.5, 1, 2.5, 5, 10, 25, 50, 100, 200 km
Pulse width	3 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 4 μs, 10 μs, 20 μs
Dynamic range (S/N = 1)	38 dB (1.31 μm) ,36 dB (1.55 μm)
Dead zone (back-scattered light)	≤7.0m (1.31 μm), ≤8.0m (1.55 μm)
Dead zone (back-scattered light)	≤5.0m (1.31μm), ≤5.5m (1.55 μm)
Dead zone (Fresnereflection)	≤1 m, ≤0.8 m (Typ.)
Loss measurement accuracy	±0.05 dB/dB or ±0.1 dB (whichever is greater)
Return loss measurement accuracy	±2 dB
Display	6.4 inch color, TFT-LCD (MT9081x, 640 × 480 dots, with backlight, transparent type)
Power supply	12 Vdc, Allowable input voltage range: 10.8 to 15 Vdc 100 to 240 Vac, input voltage range: 90 to 264 V, 50/60 Hz Battery pack: DR15SBA can be used.
Battery charging time	≤3 h
Dimensions and mass	277 (W) × 199 (H) × 80 (D) mm, ≤2.9 kg
