KEY FEATURES
Intel ATOM processor with Windows Embedded Standard for maximized productivity and unique versatility
Flexible connectivity with USB, mobile, Wi-Fi and Bluetooth capabilities
Compatible with 11 families of modules for multiple field testing applications
› CWDM network characterization at eight wavelengths
› 40G and ROADM commissioning with an optical spectrum analyzer
› Multiservice testing with a next-generation SONET/SDH analyzer
› Fiber characterization and construction with OTDR,loss, dispersion and multitest modules
› Business service activation with OTDR and Ethernet test modules
› Carrier Ethernet testing from 10 Mbit/s to 10 Gbit/s

ONE PLATFORM, OVER 30 MODULES

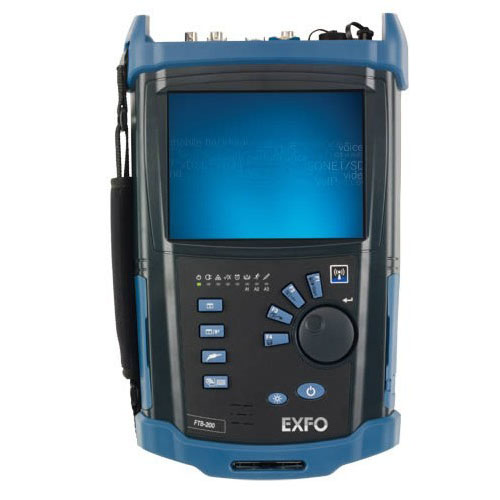

Optimized for all phases of the network lifecycle, the FTB-200 v2 houses any of EXFO¡¯s FTB one- or two-slot modules to meet your evolving needs. Configure your platform by combining optical, transport and datacom modules to cover a wide range of applications. Offering power, speed and modularity in a compact format, the FTB-200 v2 is the perfect tool for the field.

SPECIFICATIONS
Display	Touchscreen, color, 640 x 480 TFT 163 mm (6.5 in)

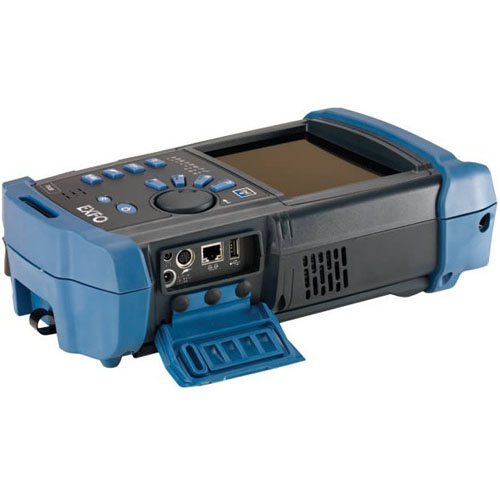

Interfaces	Three USB 2.0 ports
	RJ-45 LAN 10/100/1000 Mbit/s
	Fiber inspection probe connector port (video)
	Built-in Bluetooth and Wi-Fi (optional)
Storage	8 GB internal memory (flash)
	16 GB USB stick (optional)
Battery	Rechargeable Li-Ion batteries
	8 hours of operation as per Telcordia (Bellcore) GR-196
Power supply	AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max
	output: 24 VDC, 90 W
Computer	Intel ATOM processor
	Windows Embedded Standard
GENERAL SPECIFICATIONS
Temperature	Operating ¨C5 oC to 50 oC (23 oF to 122 oF)
	Storage ¨C40 oC to 70 oC (¨C40 oF to 158 oF)
Relative humidity	0 % to 95 % non-condensing
Size (H x W x D)	322 mm x 197 mm x 109 mm
Weight	2.1 kg (4.6 lb)
Vibration	<1.5 g at 10 Hz to 500 Hz (on three main axes)
Mechanical shock	<760 mm on six sides and eight main edges (compliant to GR-196-CORE)
