Home Manual Linear Stages >> Newport 561-GON ULTRAlign Goniometric Mount
Manual Linear Stages

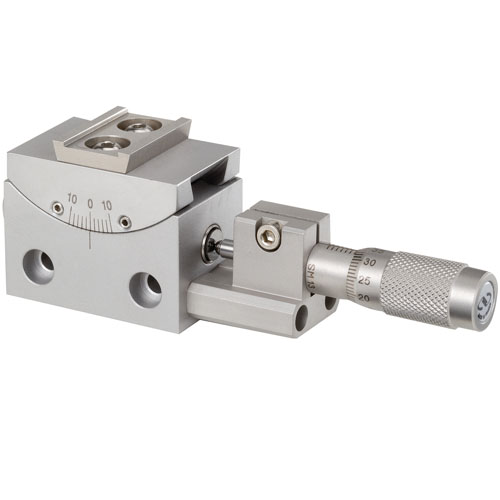

Newport 561-GON ULTRAlign Goniometric Mount
Manufacturer:
  Newport
Model:
  561-GON
Condition:
  Used
Availability:
  Yes
Price:
  $350.00
Qty:
Description:

   Feature
The 561-GON Goniometer provides precision rotation (ΘZ) about the axis of the fiber. This is useful for aligning polarization maintaining fiber or fiber arrays. The goniometer must be attached to a 561-GB Goniometer Bracket to mount it on a XYZ linear stage. 561-GON includes an SM Series Micrometer for precision positioning. Both right and left-hand configurations are available.
Model
561-GON
Type
ULTRAlign™ Fiber Alignment Accessories
Load Capacity
10 lb (44.5 N)
Bearings
Crossed Roller
Angular Deviation
<100 µrad
Optical Axis Height
3.125 in. (79.4 mm)
Travel
3 mm
Angular Range
±10° θZ mrad
Base Material
Stainless Steel
Actuators Required
1 (included)
   Details
