--Handheld Power Meter--WWG/Acterna OLP-15C Optical Power Meters

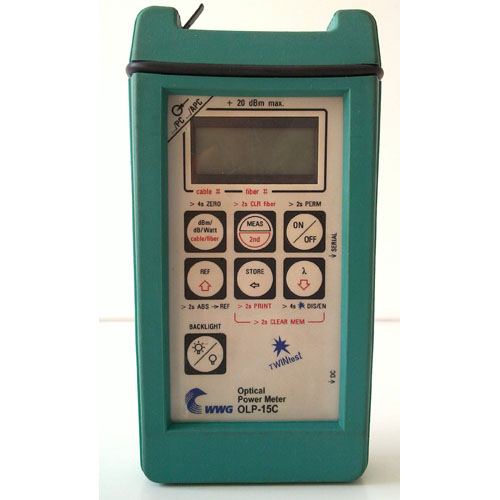

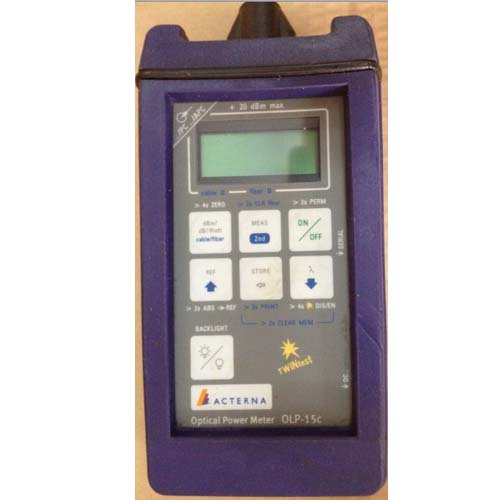

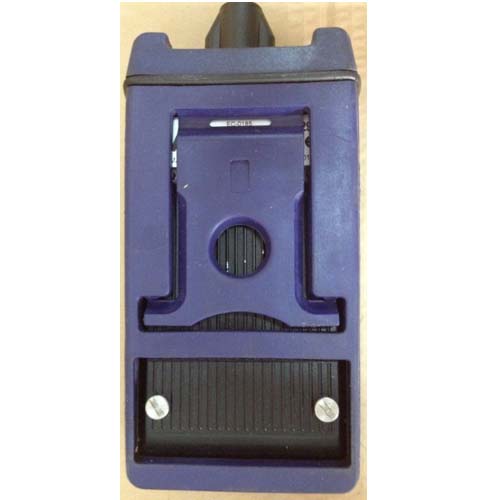

WWG/Acterna OLP-15C Optical Power Meters

Manufacturer:

Acterna

Model:

OLP-15C

Condition:

Used

Availability:

Price:

$.00

Qty:

Description:

The Acterna OLP-15C, OLP-16C and OLP-18C are compact, high performance optical power meters for installation, maintenance and repair in fiber optic networks.

Feature

The Acterna OLP-15C, OLP-16C and OLP-18C are compact, high performance optical power meters for installation, maintenance and repair in fiber optic networks.They can be used on their own for simple system power measurements, or with a light source for insertion lossmeasurements.
The full functionality of the high performance OLP range is realized when used with an Acterna Optical Light Source (OLS).

Together with a variable optical attenuator the OLPs are the right instruments for the commissioning of optical transmission systems, for example: DWDM systems.

Highlights

– Easy report generation with FiberASSISTANT software

– Data storage and RS-232 interface

– Rugged, impact resistant, splash-proof

– Three year recalibration period

– High precision, easily exchangeable adapter including UPP

High performance measurement

High performance OLPs feature a wide dynamic range making them suitable for use in many different applications.The OLP-18C is designed for those with high power levels such as CATV systems, optical amplifiers and DWDM systems.

Precision calibration to traceable national standards ensures high accuracymeasurement in user selectable units. Two unique Universal Push Pull (UPP) adapters provide reliable, reproducible connection to all common 1.25 and 2.5 mm connectors, ensuring the user always

has the correct connection in the field.

Absolute power level can be stored with a single keystroke, making it easy to take relative loss test measurements.

AutoWavelength Detection and TwinTest

Used with an Acterna Optical Light Source (OLS), high performance OLPs feature two powerful functions, designed to avoid the possibility of measurement errors.

The AutoWavelength Detection function detects the actualwavelength being used and switches automatically to the appropriate wavelength range. TwinTest performs two wavelength loss measurements automatically.

Automatic identification of individual fibers

High performance OLPs can be used to detect the modulation frequency of the fiber to be measured, for identification purposes. To speed this process, an audible signal identifying the fiber as one of four standard frequencies sounds as soon as the fiber is brought near the input.

Data storage

High performance OLPs can store up to 1000 sets of testmeasurements. Data can be downloaded to a printer for hard copy records, or to a PC for long-term storage and further analysis using Acterna’s FiberASSISTANT PC software (free software available from

www.Acterna.com).

Rugged field instrumentation

OLP-15C, OLP-16C and OLP-18C feature low power consumption for long battery life. They can be operated with AC, dry or rechargeable AA batteries which can be changed in the

field very easily. The units are supplied in a robust housing, with splashproof foil keypad and protectors for the optical connectors, to ensure reliable operation even in harsh field conditions.

Details

Specifications: Acterna optical power meters

Acterna OLP-15C

– Wavelength range: 780 to 1650 nm

– Photodiode: Germanium

– Fiber type: 9/125 to 100/140 mm

– Standard wavelengths, switchable: 780,850,1300,1310,1550 nm

– Display range: - 70 to +20 dBm

– Max. permitted level: + 20 dBm

– Intrinsic uncertainty: ±0.13 dB (±3%)

Overall measurement uncertainty(2)

– For the level range: -60 to +18 dBm

– 850nm: ±0.25 dB ±0.8 nW

– 1300,1310 nm: ±0.20 dB ±0.2 nW

– 1550 nm: ±0.40 dB ±0.2 Nw

General specifications

– Wavelength detection: automatic switching and display of nominal wavelength

– Fiber detection: automatic display of line ID

– Data memory: 1000 measurement results

– Data readout/remote control: RS-232 interface

Display

– Modulation detection: 270Hz, 330 Hz, 1 kHz, 2k Hz

– Result display: LCD, 4 digit

– Results displayed in: dBm, dB, mW, μW

– Resolution: 0.01 dB/0.001 μW

– Backlight function: switchable via separate key

– Reference level

transfer of measured value or entry of any reference level in the range
–80 to +30 dBm,
storage of one reference value per wavelength

– Optical connector interchangeable adapter

interchangeable adapter from the BN 2014/00.X range suitable for
measurements on flat or angled physical contact systems.

e.g. 2.5 mm plugs: FC, ST, SC, DIN, E2000, SMA,…e.g. 1.25 mm plugs:
LC,MU-Adapter

BN 2014/00.28 and many more

– Power supply

Dry batteries : 2 x Mignon (AA) 1.5 V

Or NiCd rechargeable cells: 2 x Mignon (AA) 1.2 V

– Operating time

from batteries typically: 36 h

NiCd cells typically: 12 h

– Batteries/NiCd power saving

the instrument switches off automatically after approx. 20 min (function can
be disabled)

– AC line operation (OLP-1xC)

separate AC adapter

– Electromagnetic compatibility

corresponds to EN 50081-1 and EN 50082-1 (CE conformance)

– Recommended calibration interval: 3 years

– Ambient temperature

Nominal range of use: -10°C to +55°C

Storage and transport: -40°C to +70°C

– Dimensions (w x h x d): Approx. 95 x 49 x 185 mm

– Weight : Approx. 500 g
