Features:
¡ñ RoHS Compliant
¡ñ Dual Independent Splice Protection Heaters
¡ñ 5.6¡± Switchable Color Monitor for Front to Back or Back to Front Operation
¡ñ Automatic Splice Start
¡ñ Automatic Heater Start
¡ñ Automatic Fiber Profiling Detection
¡ñ Complete Splice in Less than 40 Seconds
¡ñ Built-In LED for V-Groove Illumination
¡ñ User-Friendly Menu Selection System
¡ñ 24-Hour Technical Support via 888-SPLICER

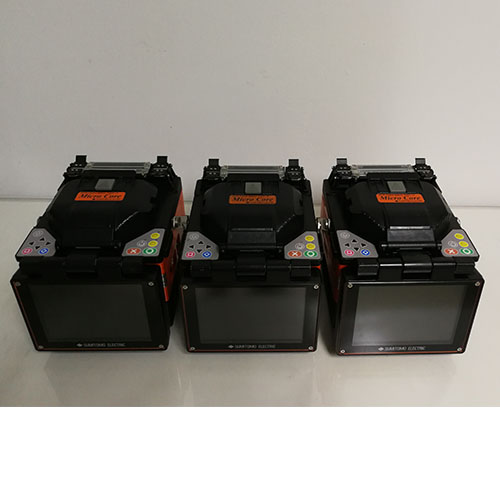

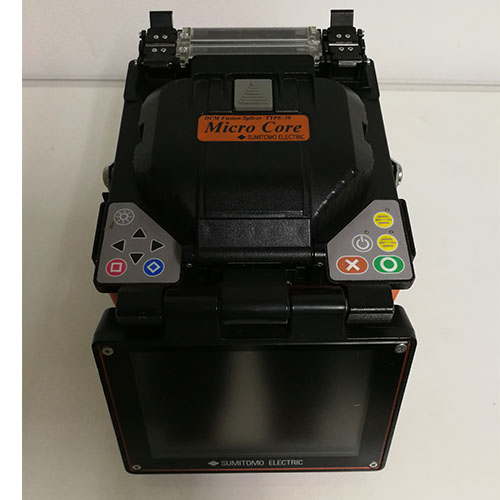

		TYPE-39
Optical fiber requirements	Material	Silica Glass
	Profile types	SMF,MMF,DSF,NZDSF
	Fiber diameter	80 to 150 ¦Ìm
	Fiber coating diameter	0.25mm	Non-0.25mm
	Cleave length	8~16mm	16mm
Standard performance	Splice loss (typical)	SMF: 0.02dB, MMF:0.01dB, DSF:0.04 dB, NZ-DSF: 0.04dB (With Sumitomo identical fibers)
	Splice cycle time	Approx. 9 seconds (Quick Mode)
	Heat cycle time	25 seconds 40mm sleeve,30 seconds 60mm sleeve
	Splice & heat cycles per battery	Approx. 100 (with BU-66S), Approx. 200 (with BU-66L)
Programs	Splice programs	Max.48
	Heating programs	Max.20
Functions	Loss estimation	Provided
	Splice data storage	10000 splices
	Proof test	1.96N(200gf)
	Automatic arc test	Provided
	V-groove white LED illumination	Provided
Size/Weight	Size	150(W) x 150(D) x 150(H) mm
	Weight	2.9kg (including PS-66)
	Monitor	5.6¡± TFT color monitor
Power supply	Power requirement	AC operation, Battery operation, Car battery operation (option)
	Battery module	NiMH (10.5 ~15V)
	AC Input	100V ~ 240V (50/60Hz)
	DC Input	DC12V [for PC-V66 (option)]
Terminals	DC output terminal	DC-12V ( for JR-5/JR-5B)
	USB port	USB 1.1 type-B
	Video output terminal	RCA jack NTSC
Operating temperature		-10¡æ ~ +50¡æ
