----Agilent Keysight 81611A Return Loss Module With 1310nm Internal Source

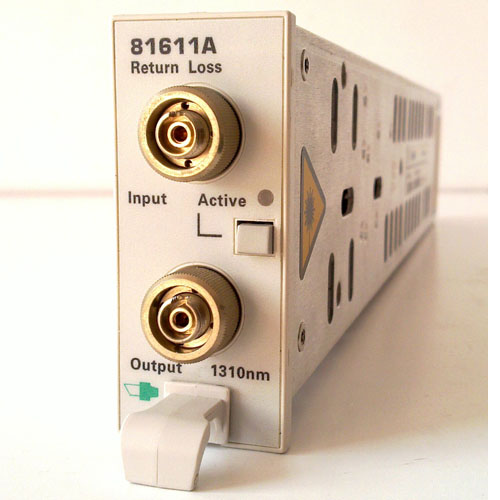

Agilent Keysight 81611A Return Loss Module With 1310nm Internal Source

Manufacturer:

Agilent Keysight

Model:

81611A

Condition:

Used

Availability:

1 pc

Price:

$1,200.00

Qty:

Description:

Feature

The Agilent Return Loss Meters are ideal for making measurements on fast telecommunications systems, such as filters, multiplexers, cross-connects, amplifiers and whole systems under test. They can also be deployed in both R&D and production environments and are suitable for singlemode applications.

The Agilent Return Loss Meters 81610A replace the Agilent 81534A Return loss Module. The features include a higher dynamic range, a small footprint, greater stability and requires no calibration.

Specifications：
● Lase type: FP-Laser
InGaAsP
● Wavelength:1310nm/+-20nm
● Max. CW output power*: <1.8mW
● Beam waist diameter: 9 μm
● Numerical aperture: 0.1
● Laser Class according to IEC 60825-1 (2001): 1
● Max. permissible CW output power: 15.6 mW
* Max. CW output power is defined as the highest possible
optical power that the laser source can prodcue at its output connector.
