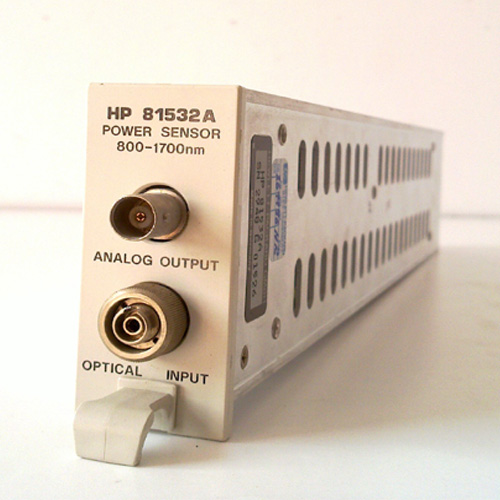

The Agilent 81532A Power Sensor Module is compatible with the 8153A, 8163A/B, 8164A/B and 8166A/B Lightwave Multimeter Mainframes.
Specifications:
• Sensor Element: InGaAs
• Wavelength Range: 800 to 1700 nm
• Power Range: +3 to -110 dBm
• Display resolution: 0.001Db/dBm
• Total uncertainty: ¡À5% ¡À0.5pW (1000-1650nm)
• Linearity: ¡À0.015dB ¡À0.3pW
• Noise: £¼0.5pW(1200-1600nm)
• Compatibility :8153A, 8163A/B, 8164A/B ,8166A/B Mainframe
