--Cleaver--Fujikura CT-30A Fiber Cleaver

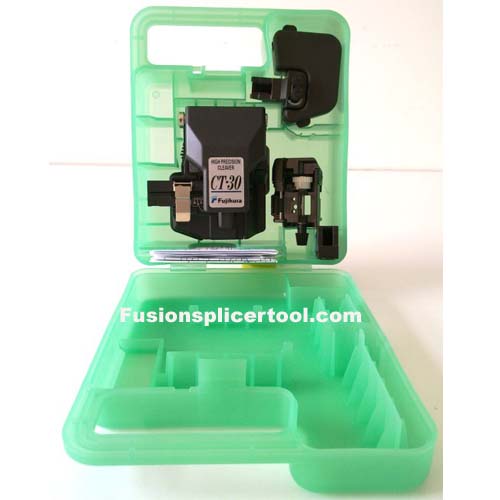

Fujikura CT-30A Fiber Cleaver

Manufacturer:

Fujikura

Model:

CT-30A

Condition:

New

Availability:

2 pcs

Price:

$850.00

Qty:

Description:

Ordering Part No.: Fujikura S014080

Feature

The CT-30 Cleaver sets the standard for portable, reliable and ease of use. Available for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the CT-30 Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for excellent portability, the CT-30 is equally at home in a splicing van or in a bucket truck and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded.

Details

SPECIFICATION
Applicable fibers	Silica optical fiber
Bare fiber diameter	125mm
Cleaving angle	0.5 degrees with single fiber
Blade life	48,000 fibers (1,000 fibers x 3 height x 16 positions)
Blade positions	3 height and 16 rotating positions
Dimensions	102W x 82D x 46H (mm) with FC-02 and FDB-03
Weight	210g with FC-02 and FDB-03

VARIATION
Model	Cladding diameter	Fiber count	Cleaving length	Fiber placing
CT-30	125mm	Up to 12	10mm	Fiber holder
CT-30A	125mm	Single	6 to 20mm	Fiber plate (AD-30A)
CT-30B	125mm	Single	16mm	Fiber plate (AD-30B)
