--光纤夹具 --Fujikura FH-70-250,FH-70-900 单芯光纤夹具

Fujikura FH-70-250,FH-70-900 单芯光纤夹具

Ʒ��:

Fujikura

�ͺ�:

FH-70-250,FH-70-900

��:

��ڱ��޵��ϸ��Ϣ��ϵ��

�۸�:

��1,750.00

��:

��:

��

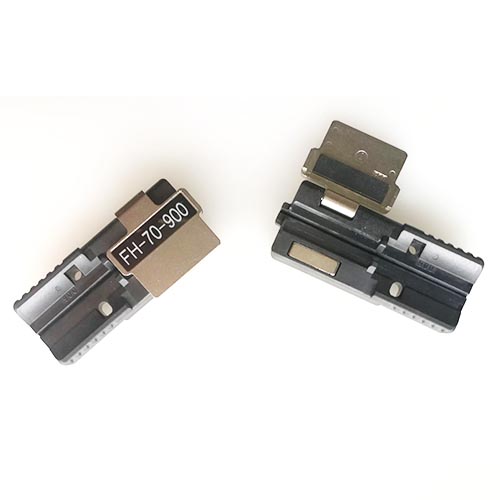

Fiber Holder FH-70 series

The Fiber Holder, FH-70 series is exclusively used for Fujikura single and ribbon fiber Splicers. Fujikura Fiber Holder System is developed to provide appropriate splicing work for several kinds of fibers, single fibers or fiber ribbons.

SPECIFICATION
Applicable number of fiber			Single to 12 fibers
Type variation			In accordance with number of fiber Please see VARIATION table below
Fiber holding			Magnetic clamping
Dimensions			39L x 16W x 7H [mm]
Weight			20g for 1pair
Use for	Fusion Splicer	Ribbon	90R,88R,70R+, 19R+, 12R
		Single	90S,88S,87S,66S,70S+,66S,61S,62C,62S+,48S+,43S,41S, 38S,33S,31S,27S+
	Fiber Cleaver		CT08, CT50
	Jacket Stripper		RS02, RS03

VARIATION
Ribbon fiber fusion splicer
Model	FH-70-2	FH-70-4	FH-70-5	FH-70-6	FH-70-8	FH-70-10	FH-70-12	FH-70-250	FH-70-900
Fiber	2-fiber ribbon	4-fiber ribbon	5-fiber ribbon	6-fiber ribbon	8-fiber ribbon	10-fiber ribbon	12-fiber ribbon	Single (250μm)	Single (900μm)

*Single fiber fusion splicer*
Model	FH-70-160	FH-70-250	FH-70-500	FH-70-900
Fiber	Single (160μm)	Single (250μm)	Single (500μm)	Single (900μm)

Note) The FH-70 series can be used for Fujikura’s previous models of splicers or fiber cleavers.
