--光探头--Newport 818-IR-L-FC/DB Fiber Optic Detector,780-1800nm,10 mW

Newport 818-IR-L-FC/DB Fiber Optic Detector,780-1800nm,10 mW

Ʒ��:

Newport

�ͺ�:

818-IR-L-FC/DB

��:

��ڱ��޵��ϸ��Ϣ��ϵ��

�۸�:

��4,500.00

��:

��:

��

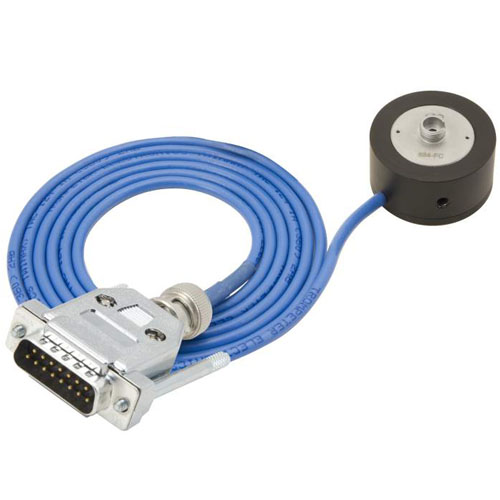

Newport 818-IR-L-FC/DB Fiber Optic Detector, Ge, 780-1800nm, 10 mW, DB15

The 818-IR-L-FC/DB is a flexible fiber optic detector that can easily be converted to a free space detector simply by removing the 884-FC fiber optic adapter installed on it. It has a power range of -75 to 1.1 dBm in case of handheld meters; this range is higher for benchtop meters (-75 to 10 dBm). It is compatible with all the current Newport optical power meter models that have a DB15 interface. Please note that models 818-IR-L and 818-IR-L/DB are no longer available for purchase. Purchase 818-IR-L-FC/DB and remove the connector and/or the fiber adapter.

Technical Specs

Detector Type

Germanium Sensor
Detector Input

Fiber-Optic
Fiber-Optic Connector

FC/PC
Detector Material

Germanium
Spectral Range

780 - 1800 nm
Sensor Size

Ø3 mm
Minimum Measurable Power

20 pW
Maximum Measurable Power Benchtop Meter

10 mW
Maximum Measurable Power Handheld Meter

1.3 mW
Maximum Power Density

3 W/cm²

Maximum Pulse Energy

5 nJ
Power Range

-75 to 10 dBm
Calibration Module

Removable DB15 Connector
Calibration Uncertainty

2% @ 780-1700nm
4% @ 1701-1800 nm
Linearity

±0.5 %
Uniformity

±2 %
Rise Time

≤2 µs
Connector Type

DB15
Cable Length

1.5 m
