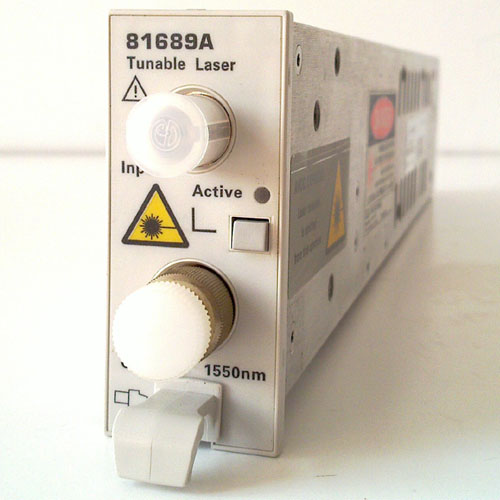

The HP Agilent 81689A compact tunable laser is specially designed for the C- Band. It allows you to add more flexibility to your test system for DWDM passive component test.
¡ñ Specially designed for the C-Band
¡ñ Saturating optical amplifiers for dense-WDM transmission systems
¡ñ Configuring multi-channel test beds for DWDM transmission systems
¡ñ Continuous sweep through full wavelength range
¡ñ Output equipped with either standard single-mode fiber or Panda type
polarization maintaining fiber
Key Specifications:
¡ñ Wavelength Range: 1525nm to 1570nm
¡ñ Output Power: >/= 6dBm
¡ñ Power Stability: ¡À0.03dB over 1 hour at constant temp
